AIX Boiler Product Advantages

Technical Parameters Find the capacity of the coal fired steam boiler you want and check other parameters of the boiler as a reference.

Item/Type
Coal Fired Thermal Oil Boiler
Rated thermal power
kw
180
300
350
460
700
1000
1200
1400
1600
1900
×104(Kcal/h)
15
25
30
40
60
80
80
120
140
160
Boiler thermal efficiency %
73
73
73
73
76
76
76
76
78
78
Design pressure MPa
1.1
Max. working temperature ℃
320
Medium circulation flow m3/h
12.5
40
40
60
80
100
100
100
100
160
Main pipe diameter DN
40
80
80
100
100
125
125
125
125
150
Installation capacity kw
8.5
15
18/15
24/20
28/25
45/40
53/48
60/55
60
80/73
Fuel type
Bituminous Coal, Soft Coal, Anthracite, Lignite, Poor Coal, etc.

Document Supply

No.
Item
Example/Issuer

Qty

Unit
1
Boiler Drawings
General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.
1
Set
2
Boiler Quality Certificate
Issued by the boiler inspection department of China government.
1
Set
3
Certificate of Origin
Such as CO, Form E, Form F, Form A, etc.
1
Set
4
Boiler Thermodynamic Calculation Book
Issued by the boiler supplier.
1
Set
5
Boiler Strength Calculation Book
Issued by the boiler supplier.
1
Set
6
Installation & Operation Instruction
Issued by the boiler supplier.
1
Set

AIX Boiler Product Advantages

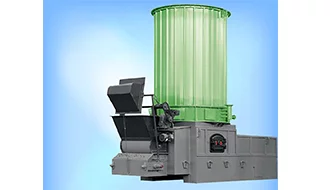

Boiler Coal Feeder
The boiler is equipped with a new-type coal feeder that automatically supplies fuel into the furnace, ensuring uninterrupted coal delivery. With automated coal feeding and slag removal, labor intensity is significantly reduced, leading to lower labor costs for enterprises.

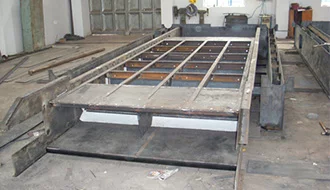

Grate Independent Air Chamber

The grate of the thermal oil boiler features an independent air chamber design, allowing for individual adjustment of airflow. This promotes more complete coal combustion, eliminates black smoke emissions, enhances environmental performance, and reduces fuel costs.

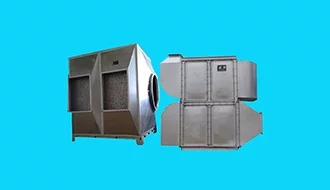

Thermal Oil Boiler Air Preheater
A high-efficiency air preheater is installed at the boiler tail to recover waste heat from the flue gas. It preheats the incoming air, reducing flue gas temperature and minimizing heat loss, thereby further improving the overall thermal efficiency of the boiler.

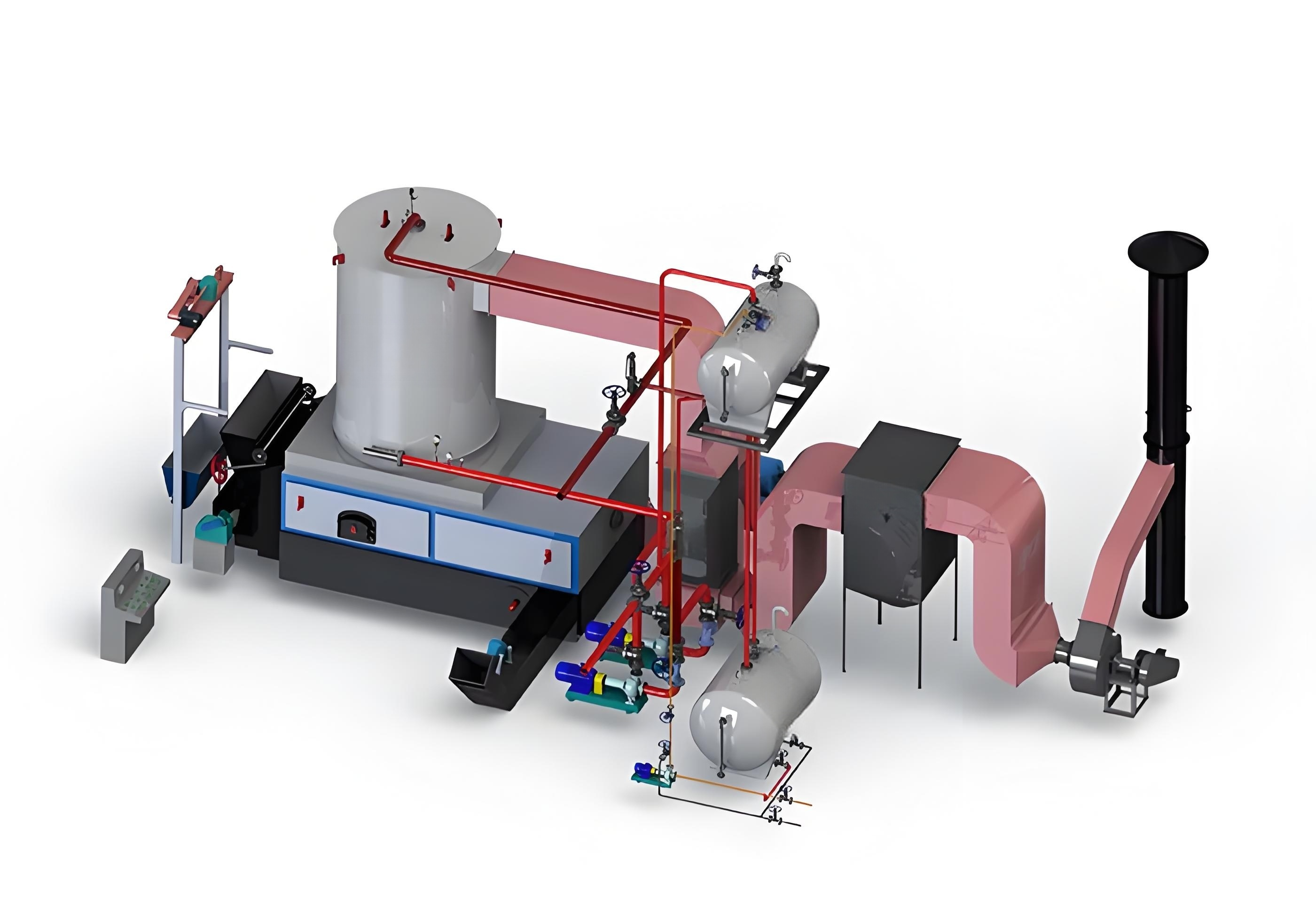

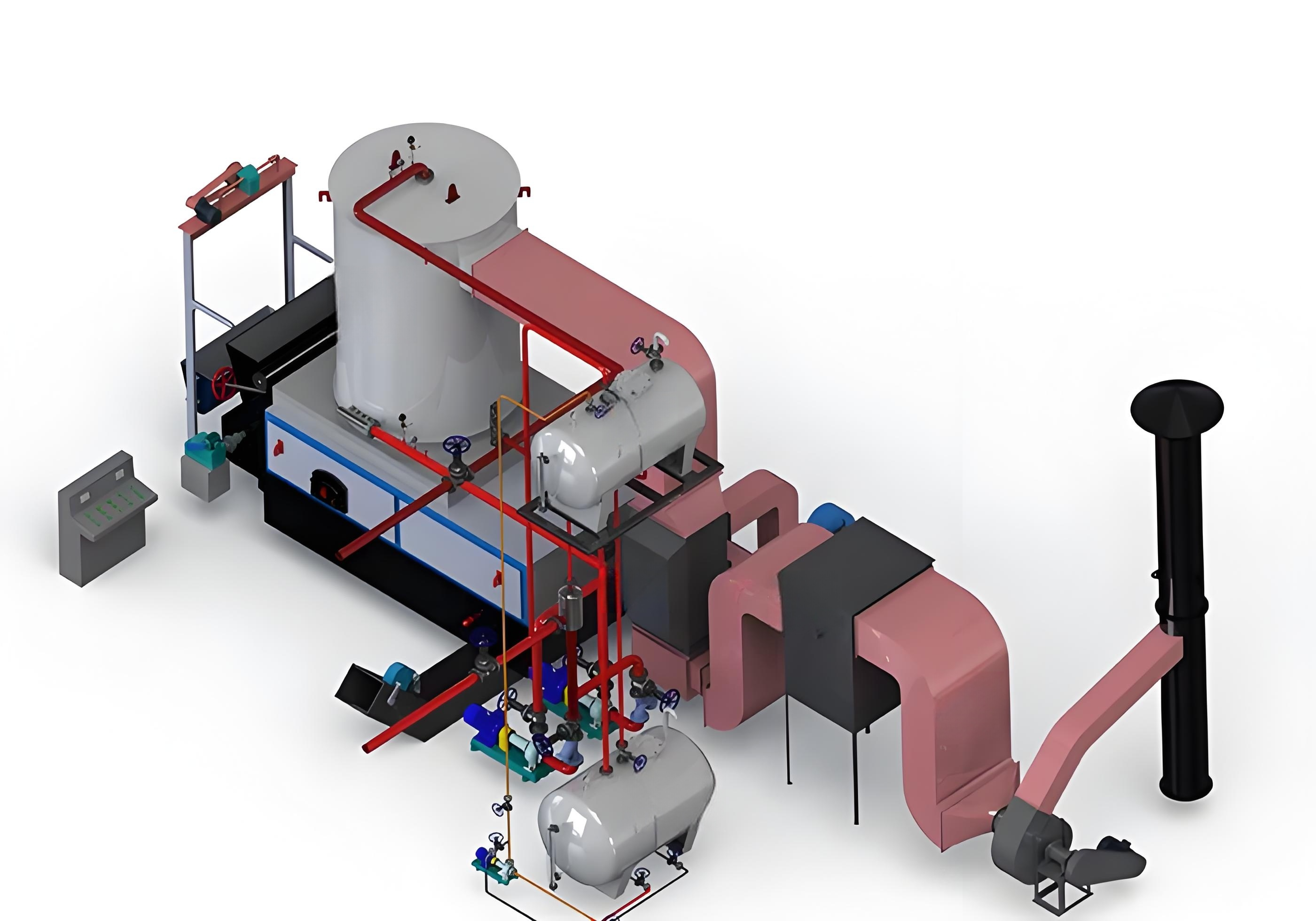

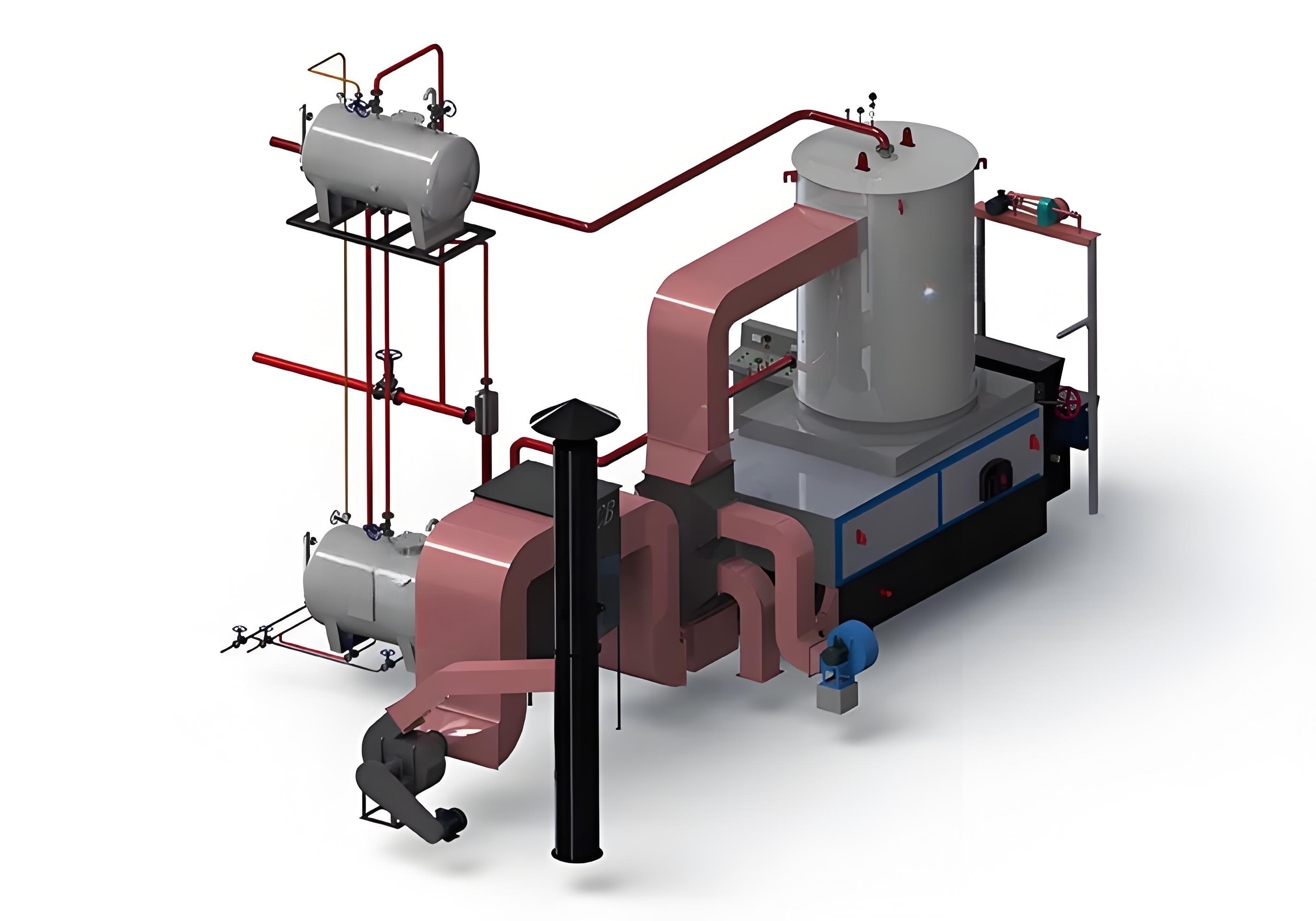

Vertical Chain Grate Coal Fired Thermal ...

﻿AIX Boiler Product Advantages﻿

Boiler Coal FeederThe boiler is equipped with a new-type coal feeder that automatically supplies fuel into the furnace, ensuring uninterrupted coal delivery. With automated coal feeding and slag removal, labor intensity is significantly reduced, leading to lower labor costs for enterprises.

Grate Independent Air Chamber

The grate of the thermal oil boiler features an independent air chamber design, allowing for individual adjustment of airflow. This promotes more complete coal combustion, eliminates black smoke emissions, enhances environmental performance, and reduces fuel costs.

Thermal Oil Boiler Air PreheaterA high-efficiency air preheater is installed at the boiler tail to recover waste heat from the flue gas. It preheats the incoming air, reducing flue gas temperature and minimizing heat loss, thereby further improving the overall thermal efficiency of the boiler.

AIX Boiler Product Advantages

Boiler Coal Feeder
The boiler is equipped with a new-type coal feeder that automatically supplies fuel into the furnace, ensuring uninterrupted coal delivery. With automated coal feeding and slag removal, labor intensity is significantly reduced, leading to lower labor costs for enterprises.

Thermal Oil Boiler Air Preheater
A high-efficiency air preheater is installed at the boiler tail to recover waste heat from the flue gas. It preheats the incoming air, reducing flue gas temperature and minimizing heat loss, thereby further improving the overall thermal efficiency of the boiler.
